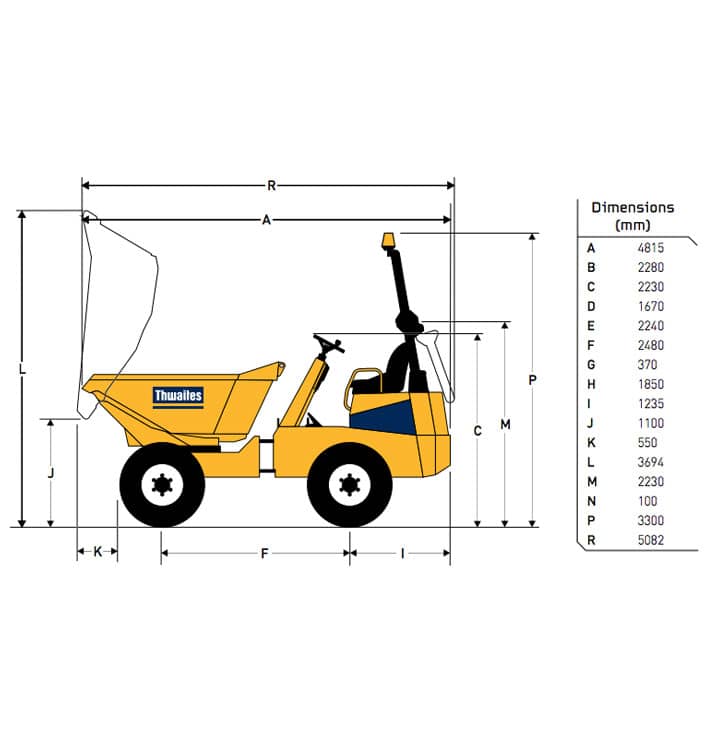

| Overall Height | up to 3.30m |
| Overall Length | 4.81m |
| Overall Width | 2.24m |
| Max Loading Capacity | 6000kg |
| Weight | 4420kg |
Engine Deutz TCD 3.6 L4 70kW/94hp at 2200rpm, water-cooled, four cylinder, charged air cooled turbo, electronic controlled fuel injected diesel engine. Powercore air intake filter and stainless steel exhaust system, including after treatment Diesel Oxidisation Catalyst providing conformity to EU Stage IIIB emission regulations. Peak torque 390Nm at 1600 rpm. Noise Levels Operator’s ear 84 LpA, airborne sound level 102 LwA Transmission Torque converter four speed forward and reverse Powershuttle transmission with column mounted directional control lever and heavy duty gear driven transfer box. Optional “Powershift” transmission with changes of speed and forward/reverse direction controlled by one column mounted lever. Speeds Forward and Reverse 1 5.0km/h (3.1 mph) 2 8.0km/h (5.0 mph) 3 15.1km/h (9.3 mph) 4 27.7 km/h (17.2 mph) Tyres 405/70 x 20 14 ply Track grip tread Brakes and Axles Twin circuit totally enclosed multiplate oil immersed discs, mounted on both axles with automatic adjustment for wear. Hand operated parking brake. Heavy duty axles with epicyclic reduction and fully floating half shafts. Kinglink Chassis Front and rear chassis constructed from deep section folded steel plate, with three point Kinglink giving articulation and oscillation for better stability, traction and extra safety on site. Remote greasing point provided for lubrication of top Kinglink articulation pin. Skip Hydraulically operated, 8 mm steel base plate, fully welded, reinforced with box section giving greater strength to minimise skip damage. No material traps. Powerswivel mounted on a ball bearing turntable with powered rotation through 180° by means of twin slewing cylinders, operated by a single dual-axis control lever. Automatic safety lock holds skip in central position when travelling.
We can organise a site visit, estimate the right kit and quote a competitive price. Source UK Hire & Sales supply an extensive range of tools and equipment on a national basis from one point of contact, which means you only need to deal with one company, operate one supplier account and receive one supplier invoice.
Both commercial and domestic users come back to us time and time again because they know we give 100% commitment to all our customers and offer a warm and friendly service.
Do you need short hire and sometimes long term hire on plant machinery? Source UK Hire & Sales offer various services for short hires from just one day to long term multiple machine orders.
Fill in the form below and start the hire process today
