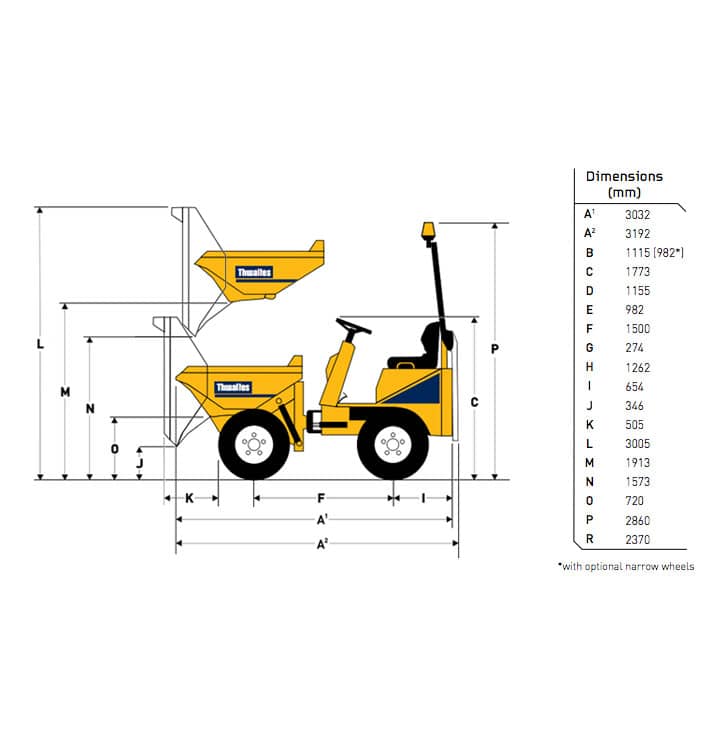

| Overall Height | up to 2.86m |
| Overall Length | 3.03m |
| Overall Width | 1.12m |
| Max Loading Capacity | 1000kg |
| Weight | 1295kg |
Engine Noise Levels Speeds Tyres Brakes Chassis Drive System Skip Max. safe load 1000 kg Heaped 500 litres Struck 400 litres Water 280 litres Yanmar 3TNV76, 15.9 kW/21.4 bhp (nett) @ 2800 rpm, threecylinder water-cooled diesel. Max torque 66.4 Nm (49 lb f ft). Electric starting, hour meter, battery isolator switch and heavyduty cyclonic air cleaner positioned within the lockable engine compartment. Operator’s ear 84 LpA, airborne sound power level 101 LwA (to 2000/14/EC). Forward/reverse: 0–12 km/h 10.0/75 x 15.3 7.00 x12 8 ply 6 Ply Track grip tread Track grip tread Automatic failsafe braking system incorporated into rear drive motors. Front and rear chassis constructed from folded steel plate, with centre-point articulation and oscillation for optimum stability and traction. Hydrostatic with variable displacement pump feeding four wheel motors, incorporating “Twin-Lock” system to maximise traction. Hydraulically operated, 3 mm base, 4 mm sides steel plate. Mouth reinforced with box sections giving greater strength to minimise damage, no material traps. Raise and tip control operated by twin control levers.
We can organise a site visit, estimate the right kit and quote a competitive price. Source UK Hire & Sales supply an extensive range of tools and equipment on a national basis from one point of contact, which means you only need to deal with one company, operate one supplier account and receive one supplier invoice.
Both commercial and domestic users come back to us time and time again because they know we give 100% commitment to all our customers and offer a warm and friendly service.
Do you need short hire and sometimes long term hire on plant machinery? Source UK Hire & Sales offer various services for short hires from just one day to long term multiple machine orders.
Fill in the form below and start the hire process today
